Standard Features
- All garden door systems come standard with a rolling screen.
- Three or four panel systmes are also available.
- In addition, we offer a retractable KV screen system which is discreet and retracts smoothly.
Hinge Options

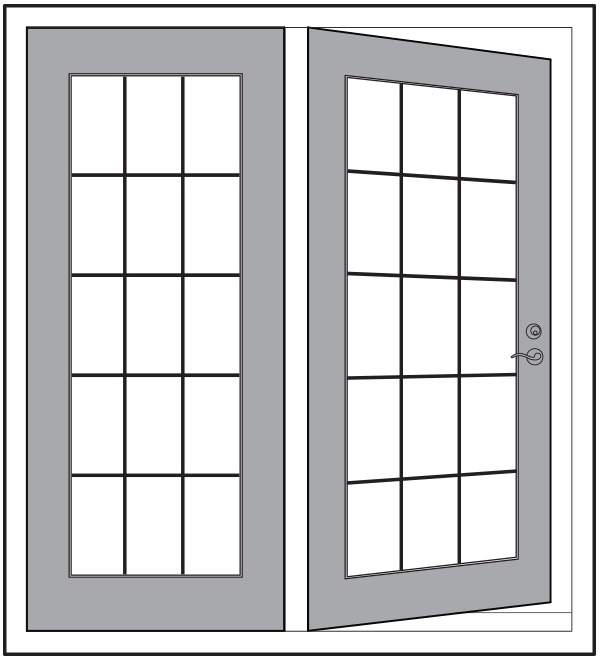

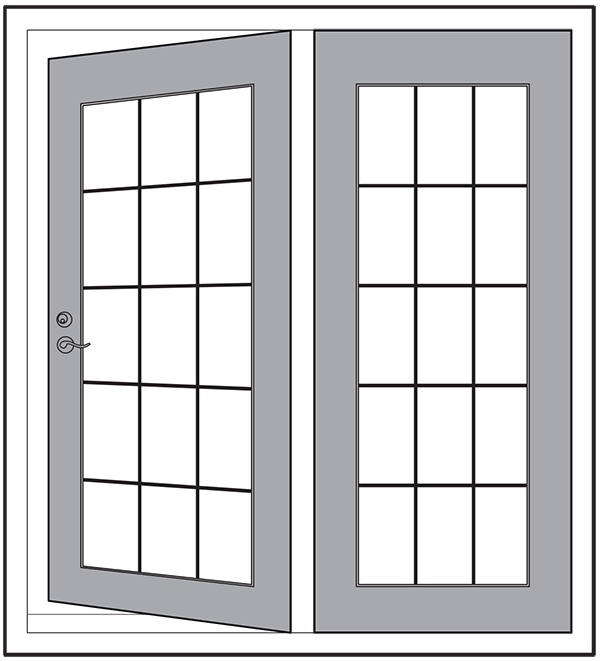

Centre Swing
![](https://kvcustomwd.com/content/uploads/2017/02/centre-swing-left-600px.jpg)
Left LHCS
![](https://kvcustomwd.com/content/uploads/2017/02/Centre-swing-right-600px.jpg)
Right RHCS

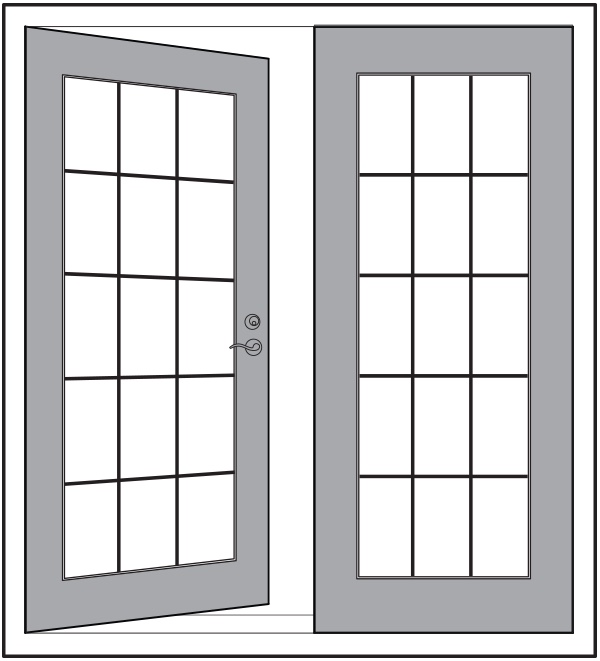

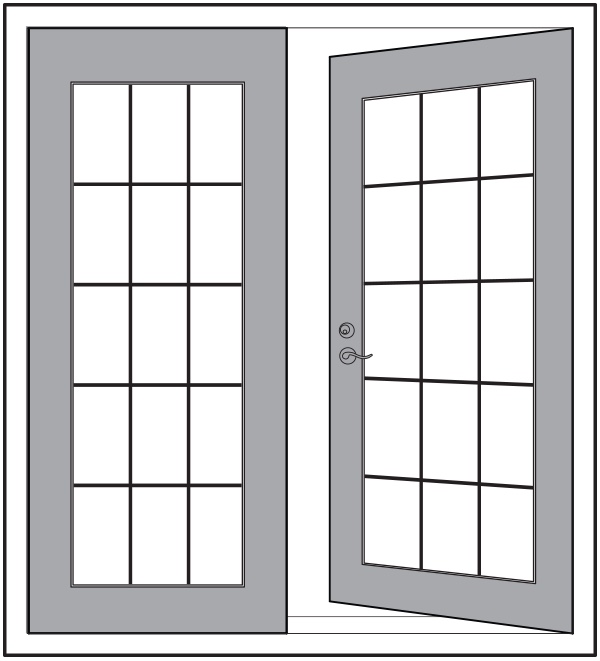

Side Swing
![](https://kvcustomwd.com/content/uploads/2017/02/Side-swing-left-600px.jpg)
Left LHCS
![](https://kvcustomwd.com/content/uploads/2017/02/Side-Swing-Right-600px.jpg)
Right RHCS

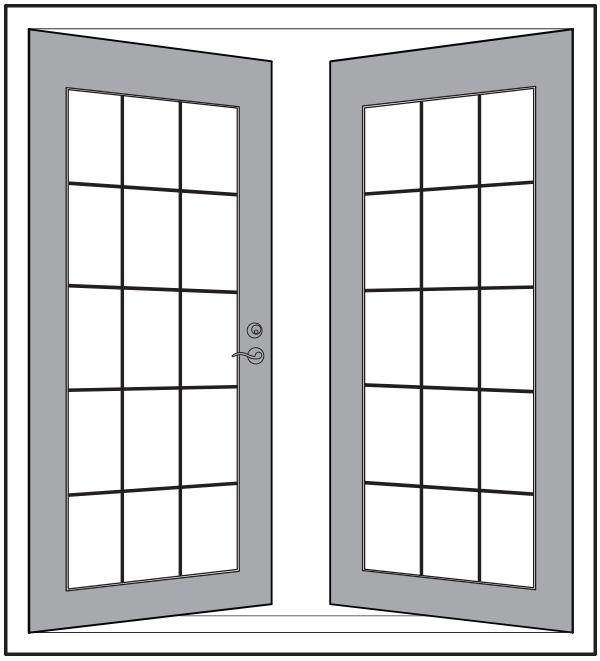

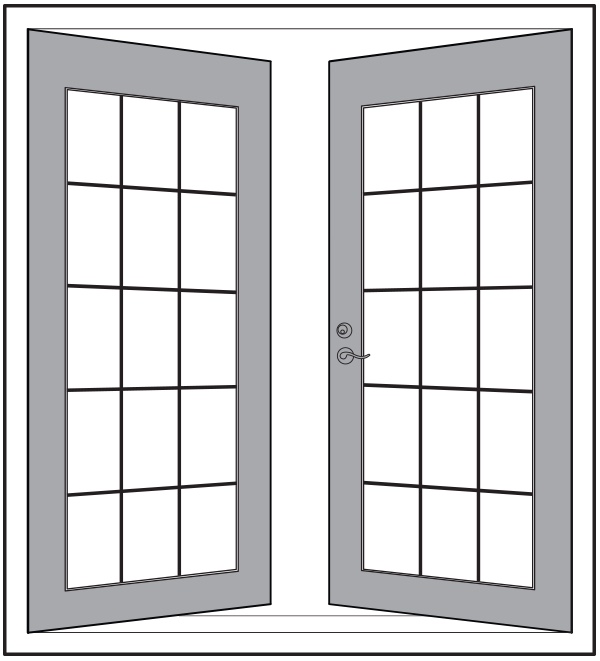

Double Operator
![](https://kvcustomwd.com/content/uploads/2017/02/Double-operator-600px.jpg)
Left LHCS
![](https://kvcustomwd.com/content/uploads/2017/02/Double-operatorright-600px.jpg)
Right RHCS

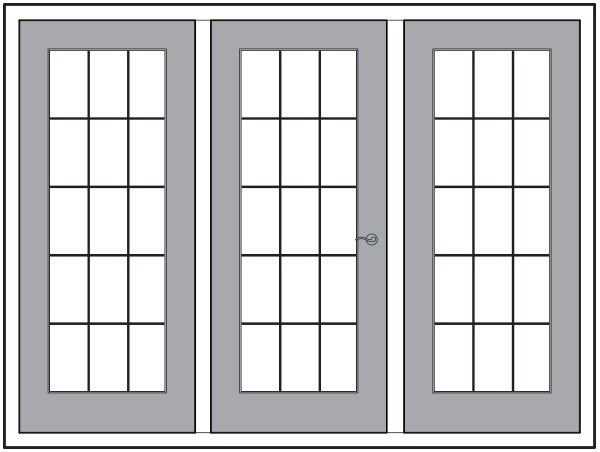

Three Panel System
![](https://kvcustomwd.com/content/uploads/2017/02/Three-Panel-System-600px.jpg)
Size Options
TWO-PANEL FACTORY
WHITE OR PAINTED DOORS
Size | Operator | Dimensions |
---|---|---|
5′ | Single | 59 5/8″ x 79 1/2″ |
5′ | Double | 60″ x 79 1/2″ |
6′ | Single | 71 5/8″ x 79 1/2″ |
6′ | Double | 72″ x 79 1/2″ |
Three-PANEL FACTORY
WHITE OR PAINTED DOORS
Size | Operator | Dimensions |
---|---|---|
5′ | Single | 89 3/4″ x 79 1/2″ |
5′ | Double | 90 1/8″ x 79 1/2″ |
6′ | Single | 107 3/4″ x 79 1/2″ |
6′ | Double | 108 1/8″ x 79 1/2″ |
